DRYWALL SHOP CARTS - GREEN LINE AND YELLOW LINE

DRYWALL CARTS

Nu-Wave Drywall Carts feature unitized tubular steel frame construction,  capacities up to 3,200 lbs., electrostatic epoxy powder coating, and a choice of caster configurations and wheel materials to match your needs.

Heavy Duty Nut and Bolt Caster Installation makes for easy caster replacement - enjoy years of additional cart use with this easy replacement feature.

go to yellow cart line

GREEN CART LINE

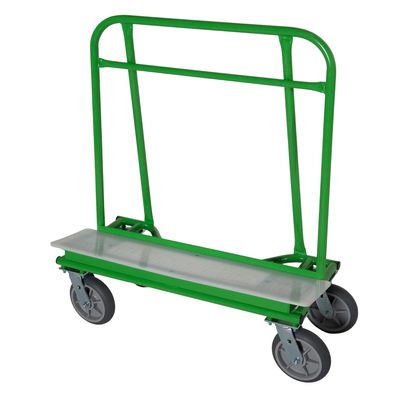

NWD-R11 RESIDENTIAL CART


 Nu-Wave’s  newest residential cart may be small but it’s tough! It holds up under  the same quality standards that you’ve grown to expect from all Nu-Wave  products.

FEATURES:

  • Comes with an Installed Panel Glide for ease in loading and unloading sheets
  • Four 8” Swivel Casters
  • Load Capacity: 2,000 lbs.
  • Weight: 62 lbs.
  • Dimensions: 40" L x 17” W x 45-1/8” H
  • Deck Dimension: 40" L x 9-1/4” W
  • Comes in Nu-Wave Green - Easily Distinguishable

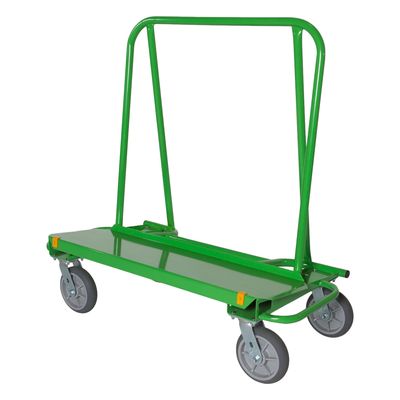

NWD-234 DRYWALL CART


 This  cart is a nice blend of Nu-Wave's Drywall Carts - can't decide on the  PD-2, PD-3 or PD-4? Then the NWD-234 might be just what you are looking  for!

FEATURES:

  • Larger Wheel Base: 36.5" L x 18.5” W
  • 12% Larger than the PD-2 & 3
  •   8% Larger than the PD-4
  • Larger Platform Deck: 43.75" L x 13” W
  •   8% Larger than the PD-2, 3 & 4
  • Bumper/Lifting Handles
  • Load Capacity: 2,400 lbs.
  • Optional Replacement Material Kickers
  • Choice of 4 Hi-Tech Swivel Casters or
  • 4 Rubber-to-Metal Swivel Casters
  • Comes in Nu-Wave Green -- Easily Distinguishable

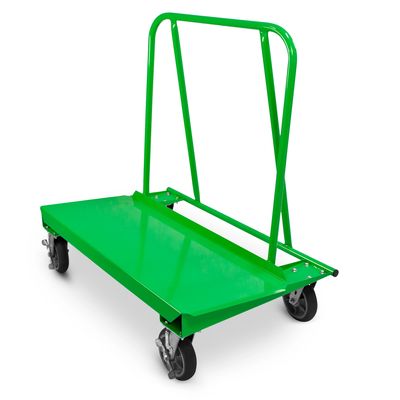

NWD-22XL UTILITY CART


 FEATURES:

  • Load Capacity: 3,200 lbs.
  • Platform Dimensions: 48" L x 19" W
  • Overall Dimensions: 47" H x 48" L x 29.25" W  (w/casters)
  • Weight: 102 lbs. (w/casters); 78 lbs. (w/o casters)
  • Comes in Nu-Wave Green - Easily Distinguishable
  • Wheel Locks Sold Separately

NWD-22XL/RCB/PPG: UTILITY CART


All the features of the NWD-22XL with a Recessed Bumper and Panel Glide

YELLOW CART LINE

back to green cart line

PD-1 RESIDENTIAL CART


 Smaller Design Moves Well in Limited Work Space


FEATURES:

  • Inset Back Tube Frame
  • Hi-Tech Wheels
  • Platform Dimensions: 9" x 39.25"
  • Overall Dimensions: 47" H x 39.25" L x 17.75" W
  • Panel Glide can be ordered separately
  • Easy Caster Replacement
  • Shipping Weight: 50 lbs. (w/o casters)

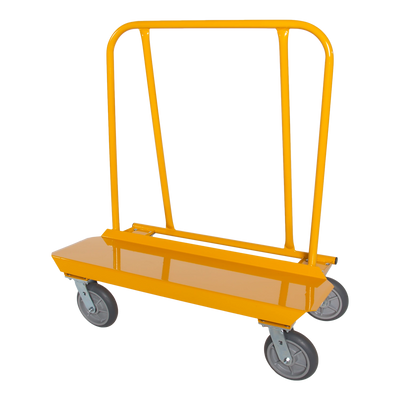

PD-2 STANDARD DRYWALL CART


FEATURES:

  • Platform Dimensions: 12" W x 43.5" L
  • Overall Dimension: 47" H x 43.5" L  x 22" W
  • Easy Caster Replacement
  • Shipping Weight: 50 lbs. (w/o casters)

PD-3 STANDARD DRYWALL CART


FEATURES:

  • Platform Dimensions: 12" X x 43.5" L
  • Overall Dimensions: 49.75" L x 22.5" W x 47" H
  • Easy Caster Replacement
  • Shipping Weight: 69 lbs. (w/o casters)

PD-4 STANDARD DRYWALL CART


FEATURES:

  • Platform Dimensions: 12" W x 43.625" L
  • Overall Dimensions: 47" H x 49.75" L x 25" W
  • Easy Caster Replacement
  • Shipping Weight: 75 lbs. (w/o casters)

PD-5 STANDARD DRYWALL CART


FEATURES:

  • Platform Dimensions: 12" W x 44" L
  • Overall Dimensions in Standard Cart Mode: 44.75"H x 45"L x 24.75"W
  • Overall Dimensions in Flat Cart Mode: 14"H x 45"L x 35.25"W
  • Easy Caster Replacement
  • Shipping Weight: 72 lbs. (w/o casters)

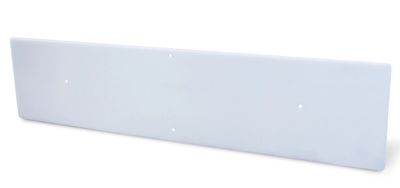

PANEL GLIDE DECK COVER AND CASTER HARDWARE KITS


FEATURES:

Special polymer material bolts to Nu-Wave Drywall Cart Decks and assist in sliding gypsum panels on and off of the cart. (Ship Weight: 3 lbs. ea.)

PPG-1: For Drywall Cart Model PD-1 Residential Cart

PPG-2: For Drywall Cart Models PD-2, PD-3 and    PD-4.

PPG-5: For Drywall Cart Model PD-5

PHK: Caster Hardware Kit, 16 Bolts (4 per caster mount). Shipping Weight: 2 lbs.
